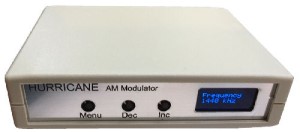

The Hurricane is our next generation intelligent AM Modulator, featuring a Digital Frequency Synthesizer controlled by a high-performance RISC-based Microcontroller with optional Bluetooth Audio and Bluetooth remote control.
With the Hurricane AM Modulator, it is easy to transmit high quality audio to any AM broadcast band radio receiver.
The Hurricane transmitter is ready built and ready to run...at an affordable price...with the performance and features of units costing many times the price...!

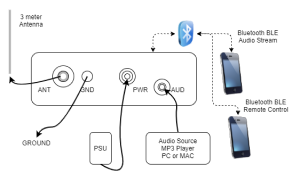

Wired - simply connect the supplied audio cable to your audio sources (i.e. PC sound card, MP3 player headpnone or line output and your ready to go.
Bluetooth BLE - with the Bluetooth Streaming
option, you can simply pair the Hurricane with your Bluetooth Audio
source and stream using Bluetooth.
Note: Bluetooth BLE Audio Streaming is an option.
Local - Simply connect the supplied 3M antenna to
the socket marked ANT and you ready to go
|Simply set the desired frequency using the front panel buttons.|
|You can select to display the frequency in kHz or in Meters|
|Adjust the Audio Gain gain level using the front panel.buttons|
|Select the VU Meter Bar to view the Audio feed in real time|
|Select the Modulation Monitor to view modulation depth (%)|
|View the Antenna voltage to check antenna is tuned correctly|
|Select the 800Hz test tone to locate the signal|
Remote Control - with the
Bluetooth BLE Remote Control option, you can control the Hurricane
using an APP with an Android Phone or Tablet, an iOS device like a
iPhone or iPad or a Windows PC.
Note: Bluetooth BLE Remote Control is an option.
Software Command Line - using Bluetooth BLE Terminal APP for Android and iOS and Windows PC. The Bluetooth Terminal APP are available now and downloadable from the Google and Apple Store for Android and iOS

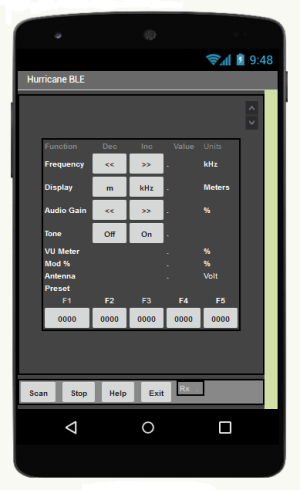

|Software Graphic UI - for Android phone or Tablet, the APP is downloadable from this website (release date June 2021)|
All Models EU and US
Optional Features (Hardware)
Optional Software (down loadable)
Fully built and tested, and supplied with "universal" switch mode power supply, standard 3 meter wire antenna and audio cable.
The Hurricane printed circuit board uses a grounding technique that splits the RF and Audio grounds, as well as providing and external grounding point. In addition a new external "universal"power supply provides regulated DC power to the transmitter, supplied with county specific power leads for the EU, UK, US and OZ
This product is available for shipping to
All specifications subject to change without notice
EU R&TTE directive and EMC Directive
2004/108/EC - in order to purchase this item, you must agree that:-
1. For use in the Netherlands for a “laagvermogen AM” (LPAM) license granted by Agentschap Telecom.
2. The item will only be used within a completely RF screened and shielded metal enclosure or environment for testing, evaluation, experimental or laboratory purposes and any other use that does not radiate electro-magnetic waves into free space.
I am not an unqualified end user and I have RF engineering and electromagnetic compatibility skills at my disposal.
3. You intend to export the item to an address outside the European Union. Under no circumstances will this item be resold or put into service within the European Union.
4. For use by a Licensed Radio Amateur on 160M Band
